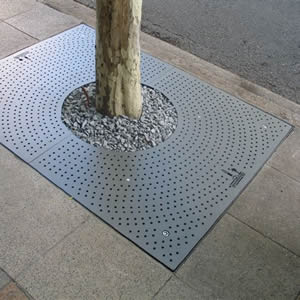

Urban FF manufacture a range of laser cut steel grates for the Brisbane City Council. We make a range of standard size decorative tree grates for new trees as well as custom made and load rated tree grates to suit existing trees. We can also make custom grates to suit up lights. Frames can be made and supplied to suit the BCC grates. Grates fit within the frames that are set into the ground.

Dimensions

• Standard Grate Sizes: 1600mm x 1600mm and 1200mm x 1600mm
• Center Cut Out 380mm diameter
• Standard Frame Sizes: 1600mm x 1600mm and 1200mm x 1200mm

Materials

• Grates - Laser Cut Steel
• Frames - steel

Finishes

• Grates have Standard BCC Powder Coat Finish Dulux Bass
• Frames are hot dipped Galvanised

Fixings

• Galvanised angle support frame
• Quick release cam locks
• 6mm bolts
